Added 11-17-19
Meyer Plow Mounting Carton Information
Drive Pro
The Meyer Drive Pro is the mount series for 1/2 ton and smaller vehicles. It consists of a Universal Clevis, and a Drive Pro Mounting Carton that is used to attach the Universal Clevis to the vehicle frame. the Universal Clevis is NOT included in any Mounting Carton. This is why it is important if you are buying a used mount to get the Universal Clevis with it. Originally when new, the Universal Clevis is sold with the Lift Frame, and Meyer calls it the CLF (Clevis Lift Frame). There are two versions of the Drive Pro Universal Clevis, the standard one, and the Half Ton Universal Clevis. As the name inplies, the 1/2 ton Universal Clevis is used on 1.2 ton trucks. It can also be used on lifted Jeeps to compensate some for the lift. The Meyer Drive Pro is available in two widths, 6' 8" and 7' 6". Both widths use the same black iron, hardware and trip springs. The 7'6" is taller and wider than the 6' 8".

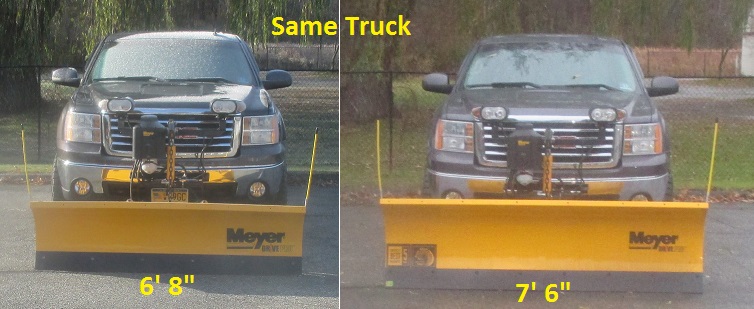

Here is a GMC Sierra 1500 that came in to swap the Moldboard. Originally the plow was on a lifted Wrangler JK.The 6'8" was too narrow for the GMC, so we swapped a 7' 6" in its place.
You can see how much taller the 7' 6" is compared to the 6' 8".
Anyway....
To make it easier for you in your search, there are two links
belowfor
each Mounting Carton. The link in the part# column is a direct link to eBay
to search for that specific Mounting Carton. The Install Instructions column
is a direct link to the Install Instructions on the Meyer web site where all
files are in .pdf format FREE for download. There are hardware lists and
diagrams for each Mounting Carton so you can see what is included and what you
are getting yourself into if you want to install it yourself. Install
Instructions have names such as "1-1124.pdf", etc..
| Make | Part Number | Description | |
|---|---|---|---|
| CHEVROLET | 18532 | 2015 & Later Colorado/Canyon 4X4 | 1-1124.pdf |
| CHEVROLET | 18500 | 2002 & LATER TRAILBLAZER | 1-919A.pdf |
| CHEVROLET | 18504 | 2004 & LATER COLORADO | 1-906A.pdf |
| Make | Part Number | Description | |
|---|---|---|---|
| FORD | 18514 | 2010 & Later Ford Ranger | 1-992A.pdf |
| FORD | 18508 | 2002 to 2005 FORD EXPLORER | 1-925A.pdf |
| FORD | 18501 | 2006 & LATER EXPLORER | 1-914A.pdf |
| FORD | 18505 | 1998 to 2009 RANGER | 1-905A.pdf |
| Make | Part Number | Description | |
|---|---|---|---|
| JEEP | 18509 | 1997 TO 2006 JEEP WRANGLER TJ | 1-931A.pdf |
| JEEP | 18507 | 2007 - 2018 WRANGLER JK | 1-909R.pdf |
| JEEP | 18503 | 2003 & LATER LIBERTY | 1-907A.pdf |
| Make | Part Number | Description | |
|---|---|---|---|
| NISSAN | 18510 | 1998-2004 NISSAN FRONTIER 4X4 | 1-932A.pdf |
| NISSAN | 18506 | 2005 & LATER FRONTIER/PATHFINDER | 1-921A.pdf |
| Make | Part Number | Description | |
|---|---|---|---|
| TOYOTA | 18533 | 2005-2016 TACOMA | 1-1142.pdf |
| TOYOTA | 18502 | 2005-2015 TACOMA | 1-913A.pdf |
