Meyer Plow Main Harness Wiring Pin Outs

These are the "1 Piece Plug" and Universal Wiring Harnesses. The 1 Piece Plug made its debut with the MDII Mount. The MDII made it necessary to unplug EACH plow light, the 3 individual Coil wires, and the Motor Harness to remove the complete plow assembly. Meyer came out with the 1 Piece Plug. The very first consisted of a short truckside harness that the individual wires could be plugged into, and a plowside harness that would connect to the E-47H, E-57H, or the E-60H.

Once it was clear moving forward that the whole plow assembly would be removed as a unit, the 22261 Truckside Harness evolved into the 22610 truckside harness. The Touchpad Controller was standard, so the harness had a plug for the Touchpad in the cab.

There was also the debut of the E-58H around the same time, so a hydraulic side harness (22604) for that came out.

Next came the Pistol Grip 22690 Controller. Since the 22691 Universal Harness was already in use on the Xpress Plows, it made sense to use the same harness, in fact, it became the Universal Harness. So the plug in the cab changed to the Universal Pistol Grip plug. This way it would be used with the E-58H, the Xpress Plows, and even the V Plows.

Naturally now that the truckside had a round plug, the various plowside harnesses came out as well.



Finally! Now we are up to what is current!

Now, here are the pin outs for all of the above harnesses to aid in wiring and troubleshooting your Meyer plow wiring.



ALL of the "Rectangular" plugs:

The Universal Harnesses:

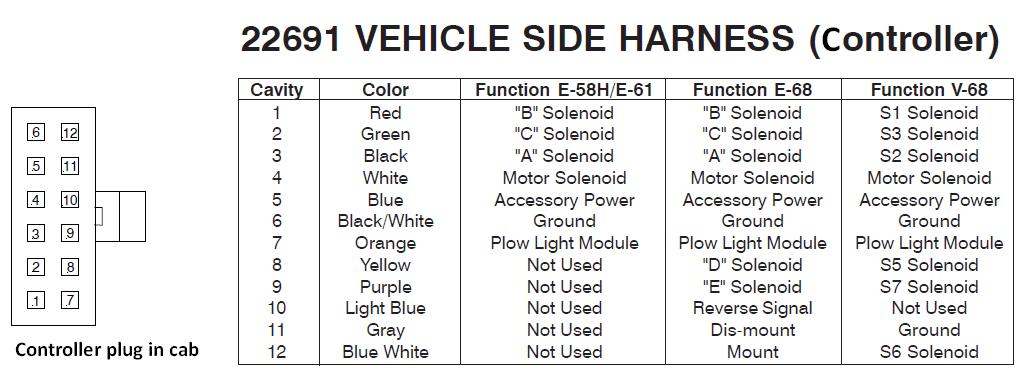

and finally, the plug in the cab:

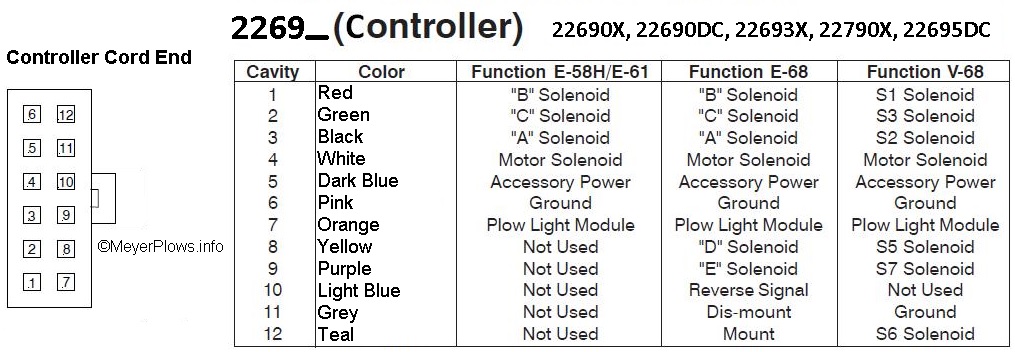

By request, the plug on the end of the controller cord:

1 Piece Plug for MD II and EZ Plus mountings (LONG)

SKU: M22610

1 Piece Plug for MD II and EZ Plus mountings (LONG)

OEM Meyer Truck Side plug and wiring harness for MD II and EZ Plus mounting with E-47, E-57, E-58H, or E-60 pumps. THIS IS THE TRUCK SIDE ONLY. Power, ground, lights, and a complete long harness into the cab for the touchpad controller.

$160.00

Manufacturer: Genuine Meyer

1 Piece Plug for MD II and EZ Plus mountings - PLOW SIDE

SKU: M22262

1 Piece Plug for MD II and EZ Plus mountings - PLOW SIDE

Genuine Meyer PLOW Side plug and wiring harness for MD II and EZ Plus mounting with E-47, E-57, or E-60 pumps. It has a power, dual ground wire for the E-60, single wire Coil connections Red, Green, Black, 2 Nite Saber plugs.

$170.00

Manufacturer: Genuine Meyer

1 Piece Plug for MD II and EZ Plus mountings - TRUCK SIDE (SHORT)

SKU: M22261

1 Piece Plug for MD II and EZ Plus mountings - TRUCK SIDE (SHORT)

OEM Meyer SHORT Truck Side plug and wiring harness for MD II and EZ Plus mounting with E-47, E-57, or E-60 pumps. THIS IS THE TRUCK SIDE ONLY. Power, ground, lights, and 3 plugs for long touchpad controller harness coming from the cab. This is the SHORT T

$170.00

Manufacturer: Genuine Meyer

1 Piece RECTANGULAR Plug for  EZ Plus mount with E-58H PLOW SIDE

SKU: M22604

1 Piece RECTANGULAR Plug for EZ Plus mount with E-58H PLOW SIDE

OEM Meyer Rectangular PLOW Side plug and wiring harness for MD II and EZ Plus mounting with E-58H. THIS IS THE PLOW SIDE ONLY. Power, ground, lights, and dual wire coil plugs. ONLY FITS E-58H Unit.

$150.00

Manufacturer: Genuine Meyer

1 Piece ROUND Plug for  EZ Plus mount with E-58H - V-70 pump TRUCK SIDE

SKU: M22691

1 Piece ROUND Plug for EZ Plus mount with E-58H - V-70 pump TRUCK SIDE

OEM Meyer Truck Side plug and wiring harness for EZ Plus mounting with E-58 - V-70 pumps. THIS IS THE TRUCK SIDE ONLY. Power, ground, lights, and a complete long harness into the cab for the touchpad controller. Also fits Xpress Plow. replaced by 22691S

Obsolete, click on 22691S

Manufacturer: Genuine Meyer

1 Piece ROUND Plug for  EZ Plus mount with E-58H PLOW SIDE

SKU: M22692

1 Piece ROUND Plug for EZ Plus mount with E-58H PLOW SIDE

OEM Meyer Round PLOW Side plug and wiring harness for MD II and EZ Plus mounting with E-58H. THIS IS THE PLOW SIDE ONLY. Power, ground, lights, and dual wire coil plugs. ONLY FITS E-58H Unit.

$159.00

Manufacturer: Genuine Meyer

1 Piece ROUND Plug for Xpress mount with E-68 / E-88 PLOW SIDE

SKU: M22694

1 Piece ROUND Plug for Xpress mount with E-68 / E-88 PLOW SIDE

OEM Meyer Round Xpress (E-88 / E=68) PLOW Side plug and wiring harness for XPRESS PLOW ONLY. THIS IS THE PLOW SIDE ONLY. Power, ground, lights, and dual wire coil plugs. ONLY FITS E-68 / E-88 Units.

$170.00

Manufacturer: Genuine Meyer

Universal Harness Hinge Cap Repair Kit

SKU: M08059

Universal Harness Hinge Cap Repair Kit

Replacement Hinge Cap for Universal Harness used on Xpress plows, and ALL current plow systems. Carefully cut off the old broken cap, install this new one. No need to replace the whole harness like in the past.

$69.99

Manufacturer: Genuine Meyer

Split Harness 22691S Repair End (Socket) For 22691S Meyer Universal Harness
SKU: M08423
Split Harness 22691S Repair End (Socket) For 22691S Meyer Universal Harness
Repair End Socket for 22691S that screws onto 22691S Split Harness. ONLY fits 22691S, not the older 22691. For 22691 repair end see Related Products or search M08059. Scroll through ALL images to be sure you are buying the correct part.
$93.99 $82.99
Manufacturer: Genuine Meyer



Going back to the older, individual controller harnesses:

Meyer Toggle Switch Wiring Diagram

Some information on Meyer Touchpad wiring.

Some information on Meyer Slik Stik wiring.

Finishing it off with ALL of the various Meyer Plow Lights over the years:

On the Meyer web site:

Original Instructions for Truck-Lite with 6 wire switch

Original Instructions for Truck-Lite with 12 wire switch

Original Instructions for Signal Stat Plow Lights

Original Instructions for Dietz Plow Lights

Supplement for Dietz Plow Lights

Meyer Nite Saber Wiring
